Cable Reel Tools

The modular design of various specifications and shapes, while maintaining consistency in coordination, facilitates effective combination in practical applications, just like building blocks.

Double lifting ring, protective ring lifting ring, with special interface or for specific cables, etc., designed for various specific needs.

Special outer protective rubber sleeve and inner rubber ball.

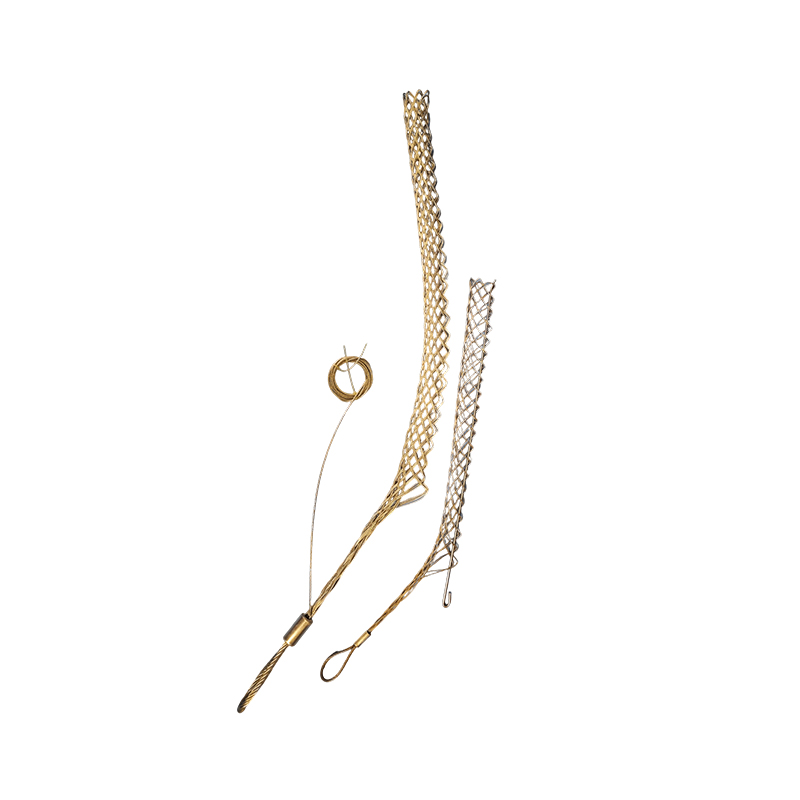

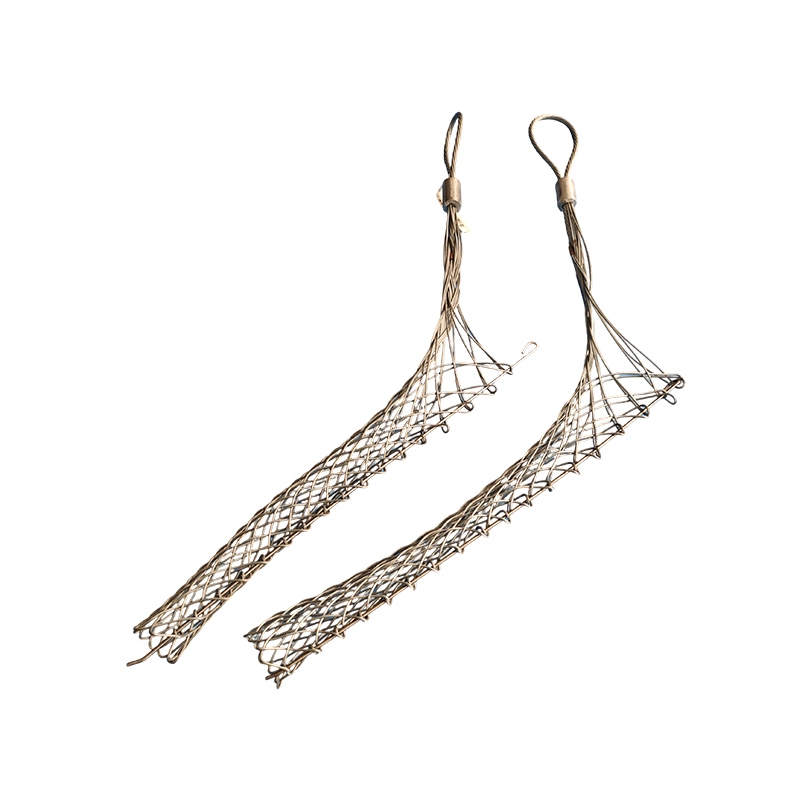

The fan-shaped mesh body wraps the cable and is sewn with a needle or wire rope to form a complete mesh immediately, which is designed to facilitate the temporary addition of auxiliary traction in the middle of the cable.

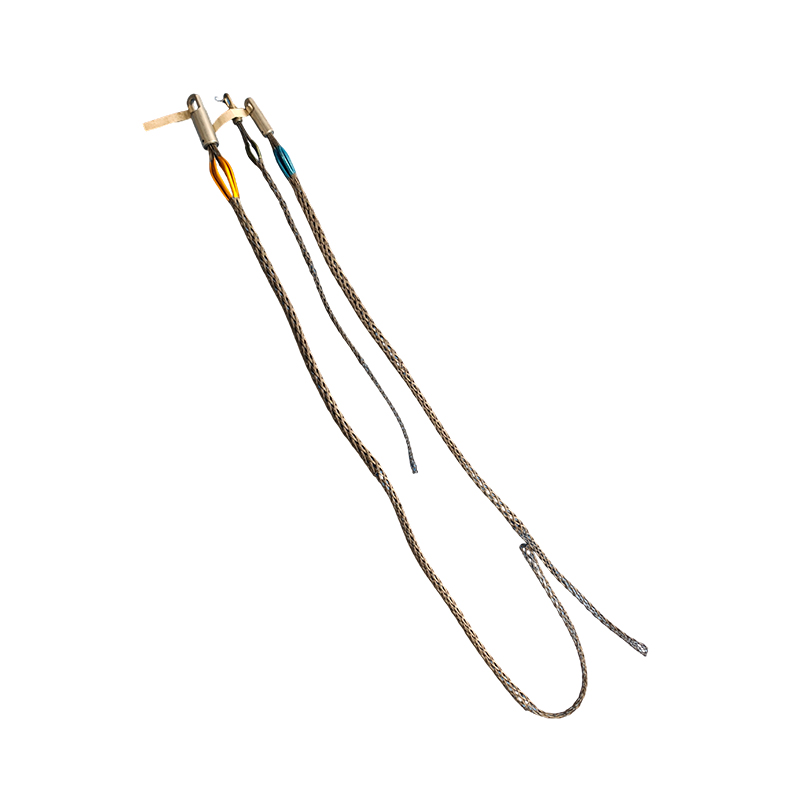

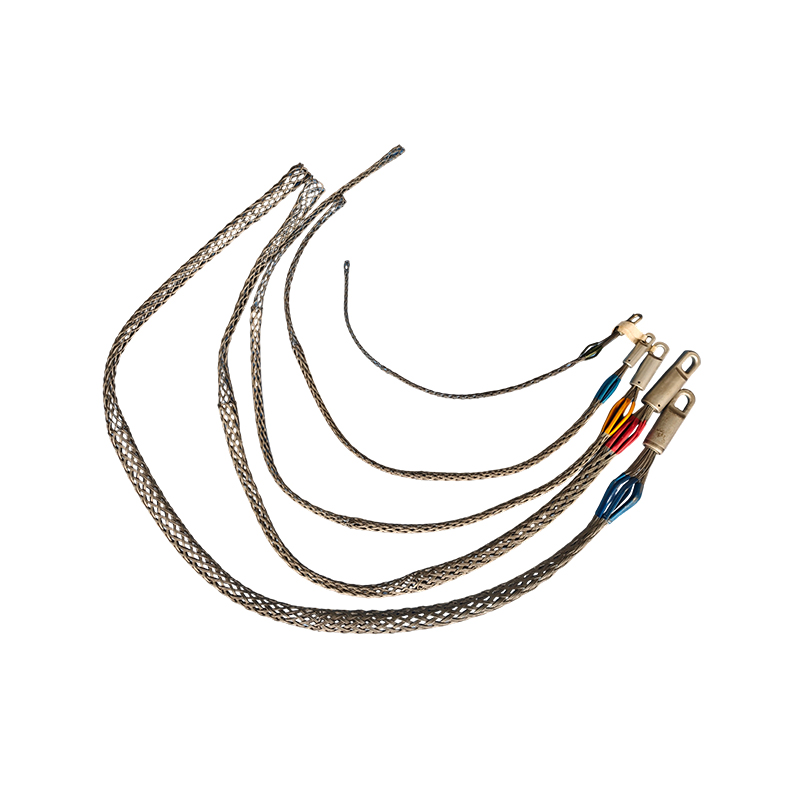

Universal traction head, multiple braided mesh body, designed to enhance the traction and gripping ability of the mesh.

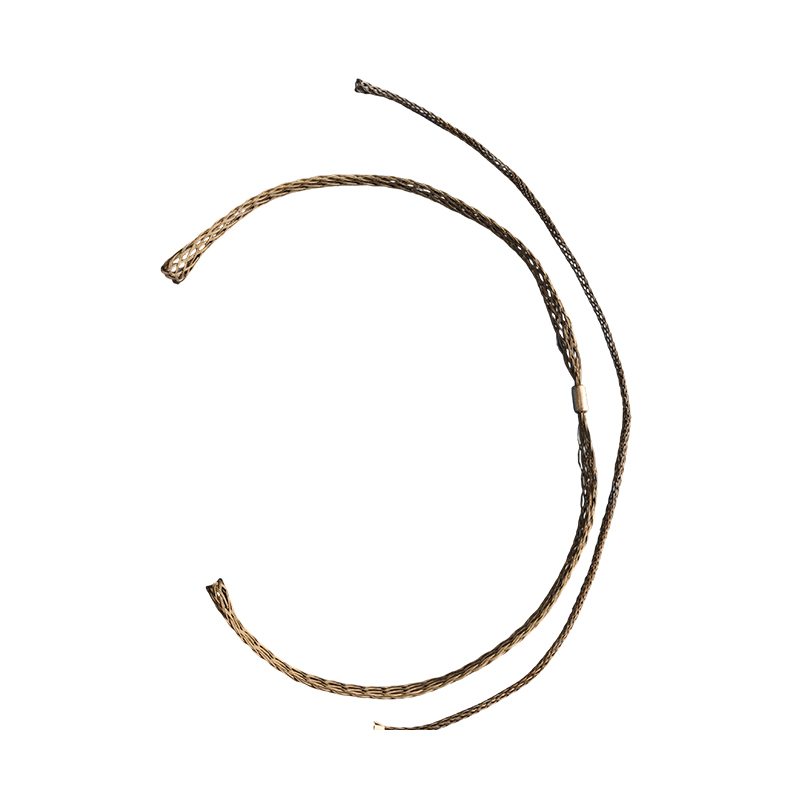

Double mesh body or straight-cylinder mesh body, designed for cable docking traction or local reinforcement.

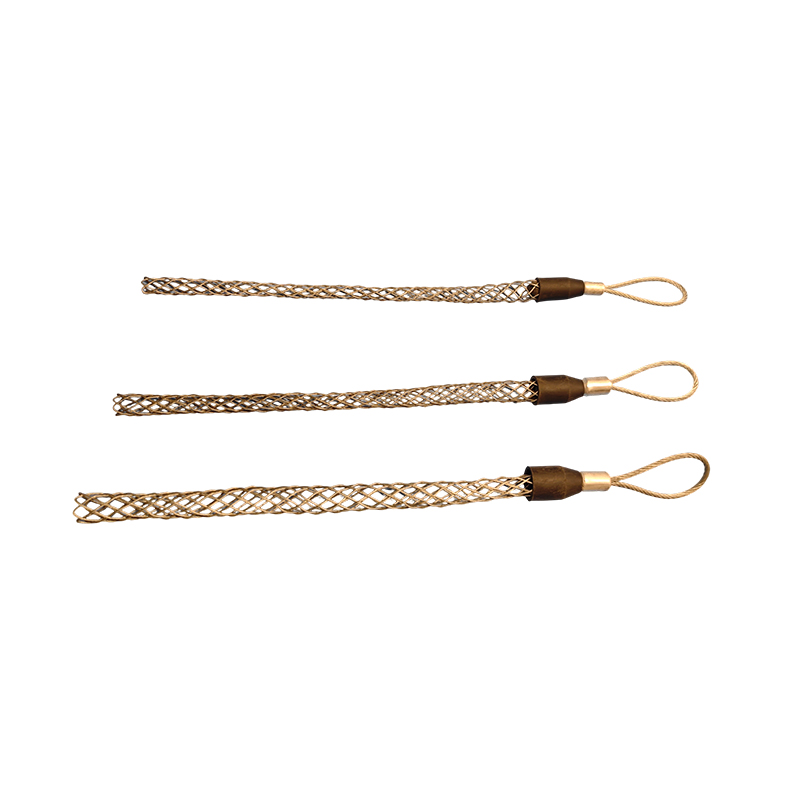

Universal traction head, designed to effectively relieve the release of traction entanglement.

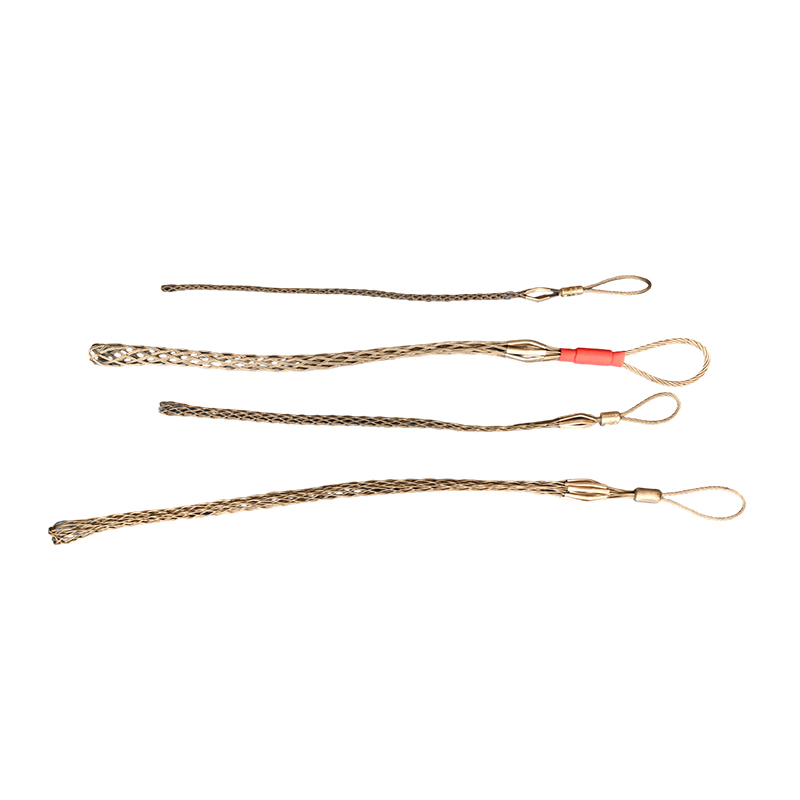

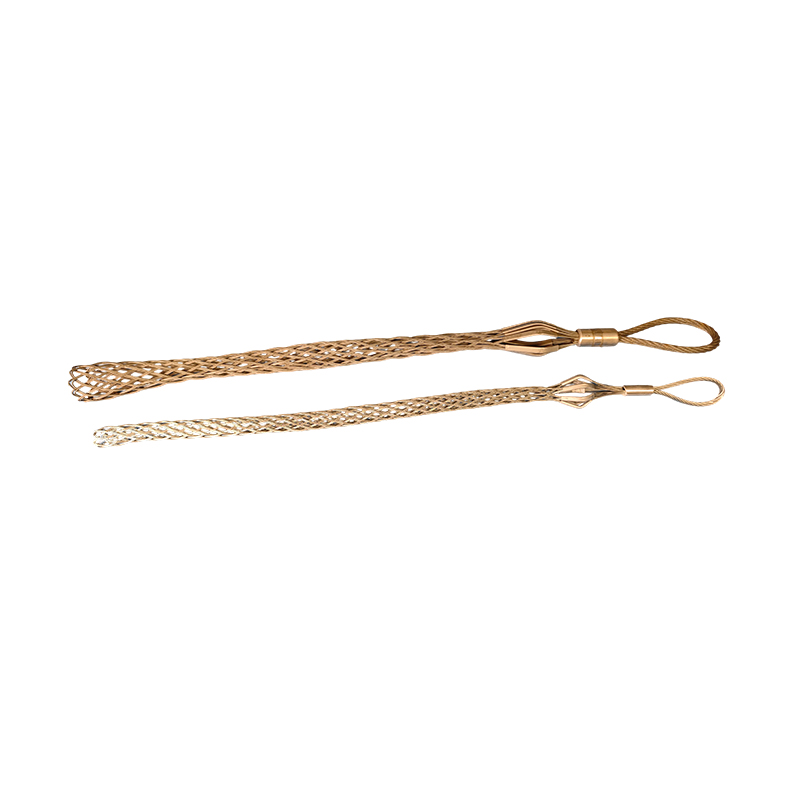

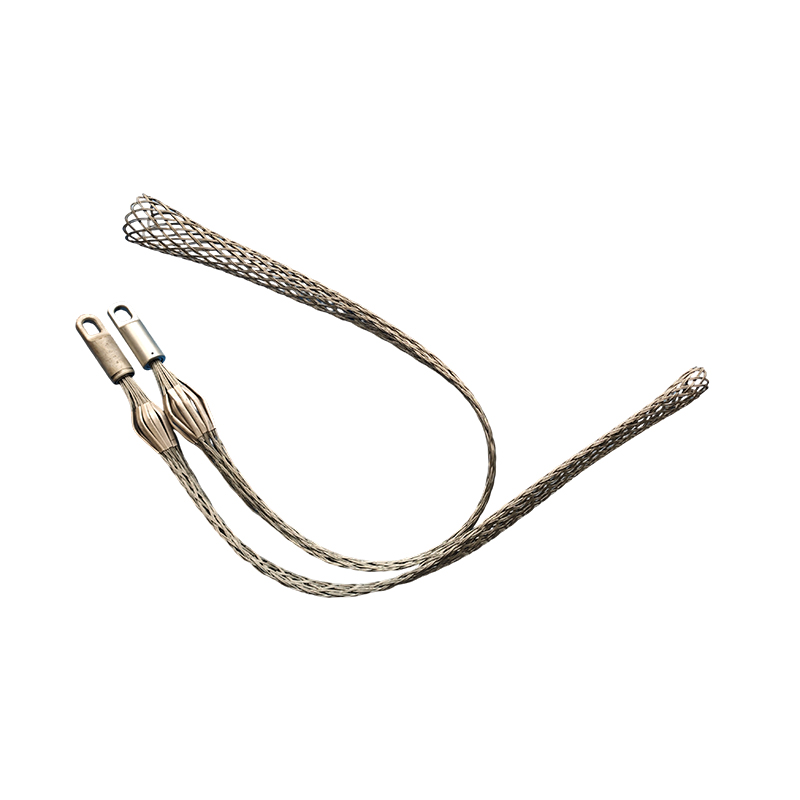

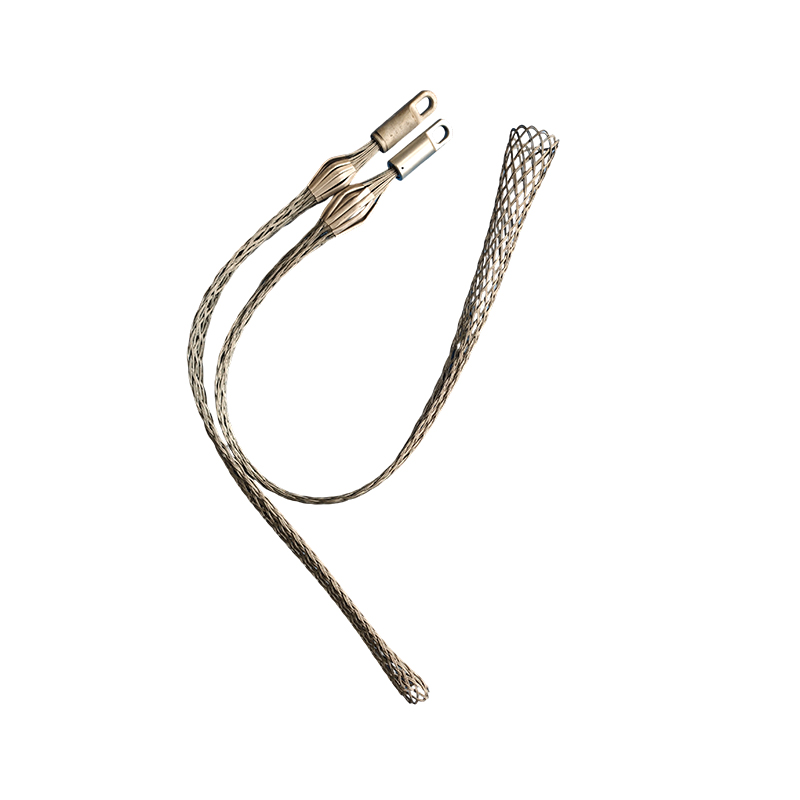

The common shape, single lifting ring traction head, cylindrical mesh body.

The cable clamp is a one-time auxiliary component used in power cable installation, designed to connect the pulling rope with the laid cable, providing reliable support for cable traction.

The clamping part of our cable clamp is made of high-quality low-carbon steel, ensuring sufficient strength while maintaining its plasticity. The traction part of the cable clamp is made of steel wire rope, ensuring both flexibility and tensile strength. These materials are carefully selected based on their intended application, with the aim of reliably connecting the cable and preventing it from detaching or being damaged due to resistance or environmental factors.

The cable clamps are available in various sizes and types according to the installation requirements of the cable, making them suitable for a wide range of cable specifications and construction conditions.

The cable clamp provides a simple and effective solution for power cable installation. It helps reduce the risk of cable damage and enhances the overall safety and functionality of the electrical system.

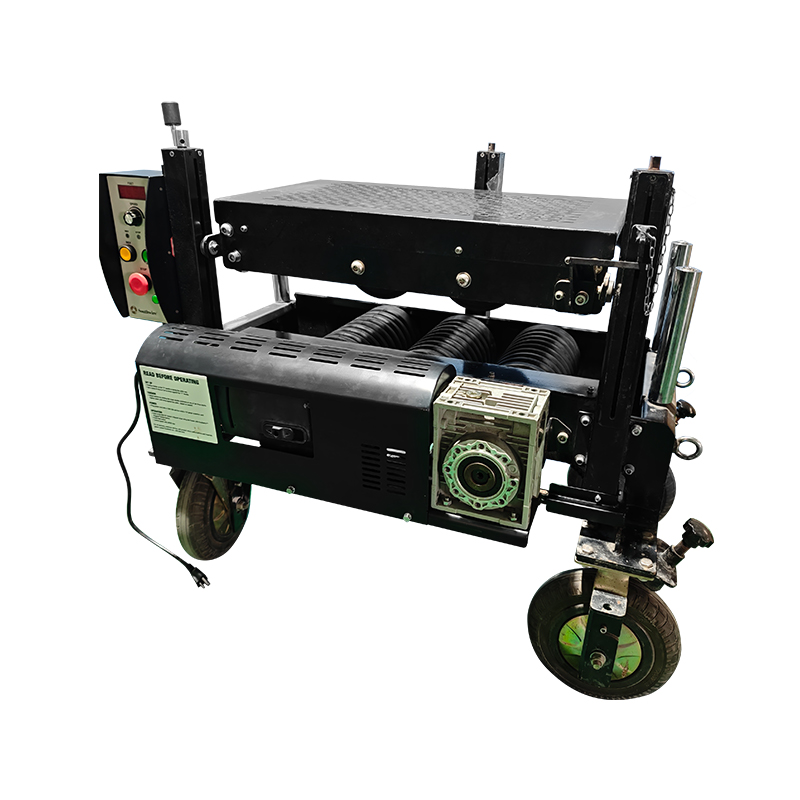

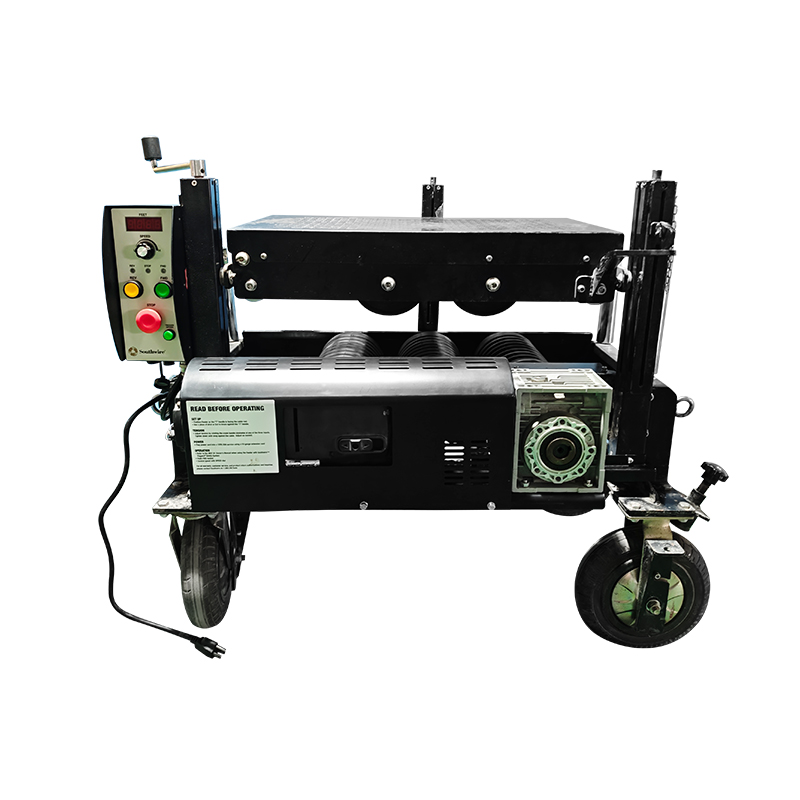

Wire Feeding Machines are typically used in conjunction with pulling machines, with the pulling machine guiding the cable in the correct direction for installation, while the Wire Feeding Machine provides continuous and smooth thrust to the cable, preventing damage caused by resistance. The feeding speed and length of the cable can be clearly and effectively controlled through a digital display. These machines are meticulously designed to simultaneously feed 8 strands of cables with uniform diameter.

They can accommodate different cable specifications and allow adjustments to the feeding length and speed according to the specific requirements of each project. Additionally, they are equipped with features such as online control and anti-jamming reverse functions to ensure coordinated operation with pulling machines and reliable performance.

Furthermore, the Wire Feeding Machine is equipped with a digital display and intuitive control devices, enabling operators to more easily set up and monitor the cable feeding process.

Constructed with robust and durable components, these machines are built to withstand the demanding conditions of heavy-duty work environments. They offer various features such as adjustable pulling speeds and torque settings to meet different operational needs. Whether for long-distance pulls or confined spaces, these machines ensure smooth and controlled cable movement, minimizing the risk of cable twisting, tangling, or damage during installation.

Wire Pulling Machines are powered by single-phase motors and provide rated pulling forces according to the model, allowing users to select suitable machine for their needs. Smaller, low-power models are favored for their portability, while higher-power models are typically used in heavy-duty applications that require greater pulling force.

In addition to power variations, easy-to-replace adapters are another key feature of these machines. They offer 5-8 sets of specifications, ensuring compatibility with various pipeline sizes and cable diameters.

In summary, our Wire Pulling Machine plays a crucial role in enhancing the efficiency of cable installation operations. They are a valuable investment for companies looking to reduce labor intensity while maintaining high-quality cable laying.
